Coil Supports

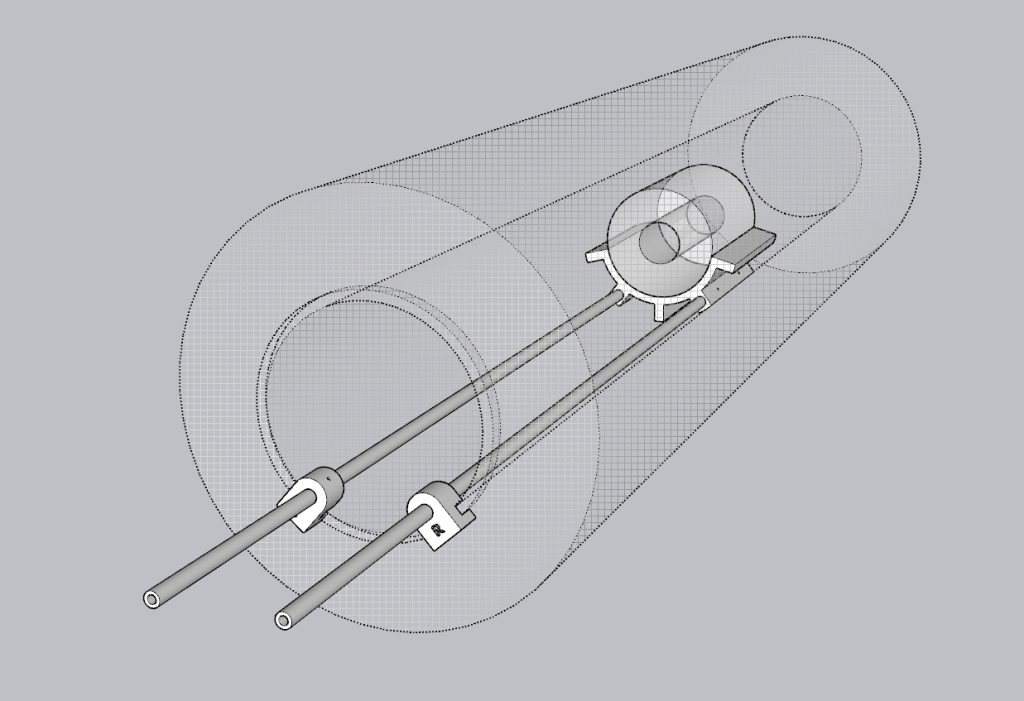

Structure for supporting a 14cm 1H/13C coil within a 20cm bore. PVC pipes are used to insert the coil and structure, small tabs hold the structure in place by attaching to the lip of the gradient insert.
[skp] [base.stl] [left_tab.stl] [right_tab.stl]
Structure for supporting a cardiac surface coil within a quadrature volume coil.
[skp] [stl]

Animal Cradles & Parts

A six-mouse cradle for simultaneous PET and MR brain imaging. Made in collaboration with Dr. Joe Mandeville.
[skp]

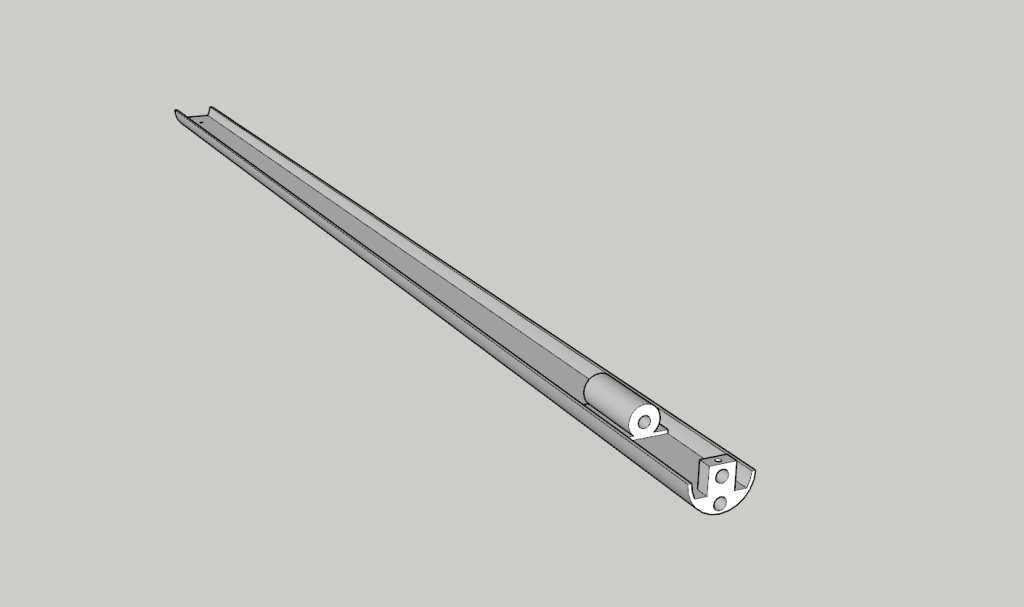

A long mouse cradle for use with a custom volume coil. Cutouts for anesthesia and waste anesthetic gas scavenging.
[skp] [stl]
A bite bar for rats under anesthesia.
[skp] [stl]

Miscellaneous

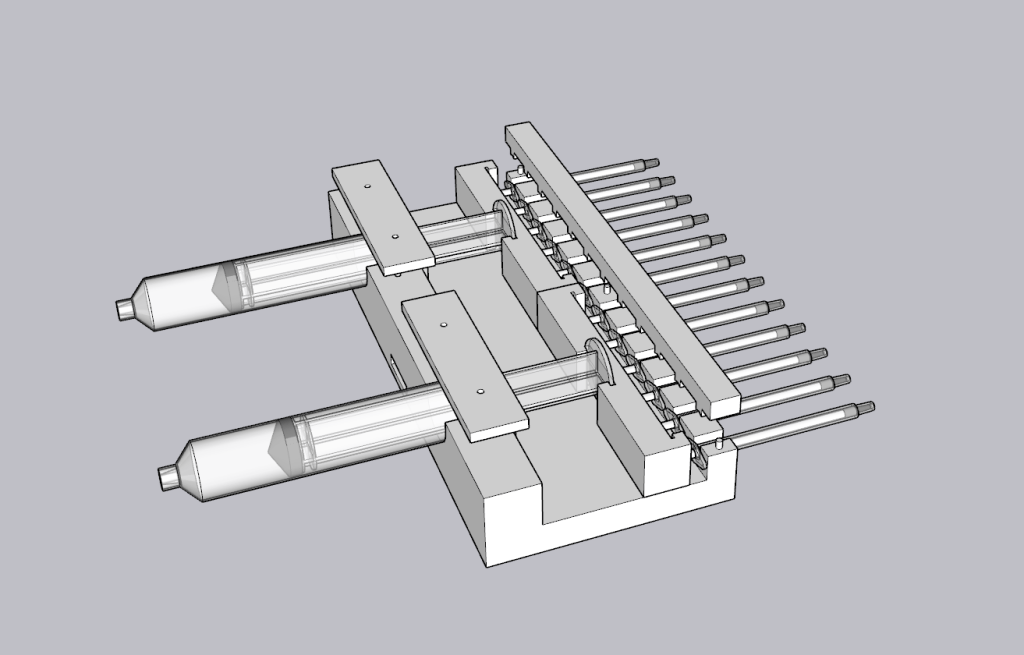

Syringe pump for six in-scanner injections of two agents (e.g. MR contrast and PET tracer). This was drawn as a concept and never printed or tested.
[skp] [stl]
